Fogatti | InstaHeat 25,000 BTU Furnace | INSTAHEAT25 | RF025 | 25,000 BTU | Easy Installation

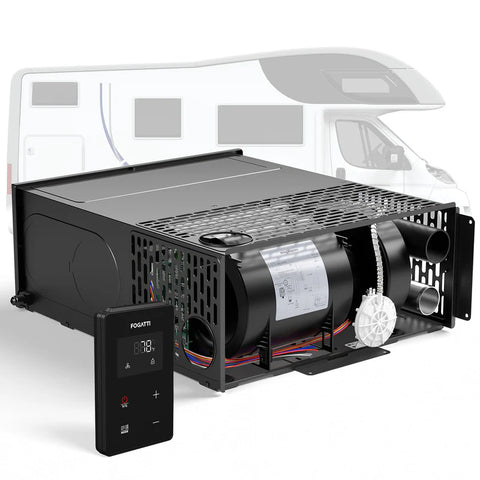

Fogatti RF025 InstaHeat RV Furnace | 25,000 BTU | LP Gas | 12V
The Fogatti RF025 InstaHeat 25,000 BTU RV Furnace delivers powerful, efficient heating performance designed specifically for modern RV applications. Engineered with advanced safety systems, quiet operation, and flexible installation options, this furnace provides reliable comfort in a wide range of travel trailers, fifth wheels, and motorhomes.
Built for both OEM replacement and new installations, the RF025 combines high-output heating capacity with intelligent temperature control, ensuring consistent warmth even in colder environments.
High-Performance Heating Power
With a 25,000 BTU output, the RF025 provides fast, even heat distribution throughout your RV interior. The integrated blower system delivers approximately 220 CFM airflow, allowing the furnace to quickly raise ambient temperature and maintain consistent comfort.
- Ideal for mid-size RVs and travel trailers
- Rapid heat-up time with consistent airflow
- Maintains stable interior temperatures across multiple zones
Intelligent Temperature Control
The RF025 features an integrated smart thermostat system designed to maintain precise temperature regulation with minimal fluctuation.
- Adjustable temperature range: 50°F to 103°F
- Stable temperature control for improved comfort
- Efficient cycling reduces fuel consumption and wear

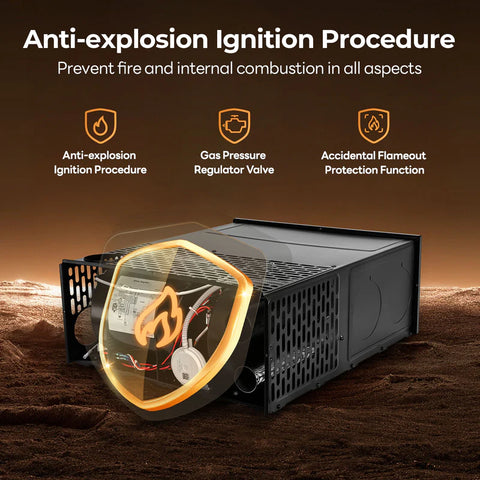

Advanced Safety Engineering
Fogatti’s triple explosion-proof safety system provides enhanced protection during operation, making the RF025 a dependable heating solution for RV environments.
- Multiple ignition and gas safety safeguards
- Designed to prevent flameout and gas irregularities
- Engineered for safe LP gas operation under mobile conditions
Quiet & Efficient Operation
Designed for comfort as well as performance, the RF025 operates at low noise levels (≤50 dB), minimizing disruption during use.
- Quiet airflow and combustion operation
- Ideal for overnight heating without disturbance

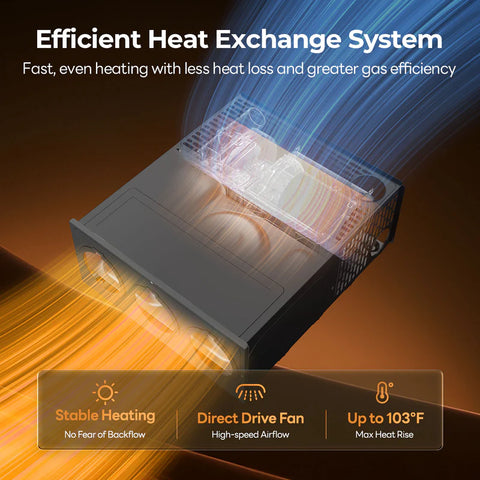

- Efficient heat exchange reduces energy loss

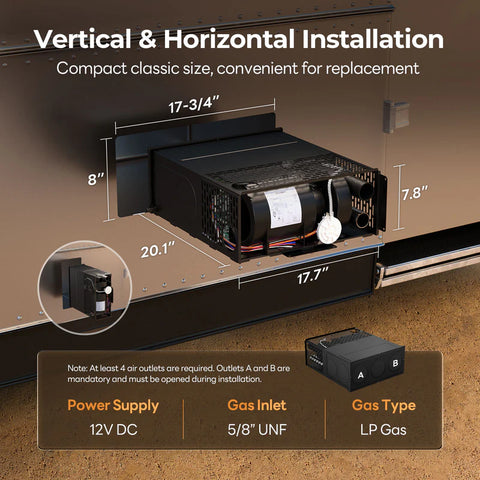

Flexible Installation & Universal Fitment
The RF025 is engineered formaximum installation flexibility, making it suitable for both replacement and new builds.
- Multi-position installation – horizontal or vertical mounting
- Compact form factor for tight RV spaces
- Compatible with standard RV furnace ducting systems
- Designed to integrate into existing furnace cutouts in many applications
Technical Specifications
| Specification | Detail |
|---|---|
| Model | RF025 |
| Heat Output | 25,000 BTU/h |
| Airflow | 220 CFM |
| Fuel Type | LP Gas |
| Power Supply | 12V DC |
| Gas Inlet | 5/8" UNF |
| Temperature Range | 50°F – 103°F |
| Noise Level | ≤50 dB |
| Dimensions | 8" H × 17-3/4" W × 20.1" D |
| Installation | Horizontal or Vertical |
| Application | RV Furnace (Ducted Heating) |
