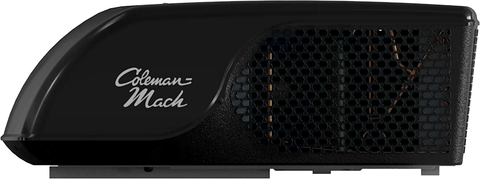

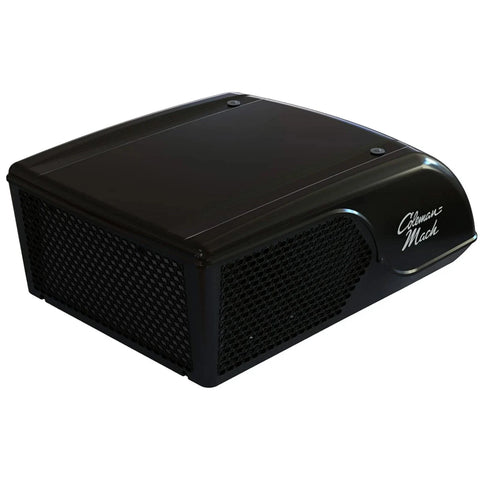

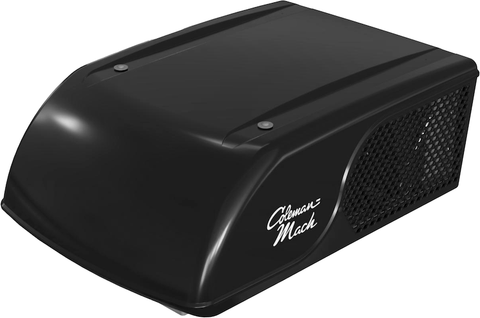

Coleman | Everest VS-18 Mach-C 18,000 BTU RV Air Conditioner | 2111-00481 | Ducted or Non-Ducted | Variable Speed | Black | R32

Take your RV comfort to the next level with the Coleman-Mach Everest VS-18 Mach-C Variable Speed Air Conditioner, a premium rooftop cooling system engineered to deliver exceptional cooling performance, quieter operation, and outstanding energy efficiency. Featuring 18,000 BTU of cooling capacity, advanced variable-speed inverter technology, and environmentally friendly R32 refrigerant, the Everest VS-18 Mach-C (Model 2111-00481) automatically adjusts compressor and blower speeds in real time to maintain consistent cabin temperatures while consuming significantly less power than conventional fixed-speed RV air conditioners.

Finished in a sleek black housing, the Everest VS-18 complements today's modern RV exteriors while providing the same industry-leading performance as its white counterpart (Model 2111-00471). The only difference between the two models is the exterior color.

Unlike traditional rooftop air conditioners that repeatedly cycle on and off at full capacity, the Everest VS-18 continuously monitors interior cabin conditions and precisely modulates cooling output to match demand. This intelligent operation reduces compressor cycling, minimizes startup current, lowers electrical consumption, improves humidity removal, and creates a noticeably quieter camping experience.

Built specifically for the rigors of RV travel, the Everest VS-18 incorporates a heavy-duty powder-coated steel base pan, hydrophobic-coated evaporator coils, and increased shroud-to-coil spacing for enhanced durability, improved moisture drainage, reduced freeze-up, and superior protection against road debris, hail, and harsh weather conditions.

Compatible with both ducted and non-ducted RV HVAC systems, the Everest VS-18 delivers powerful, even airflow throughout your coach when paired with the Coleman-Mach Everest 360° Airflow Ceiling Assembly, eliminating hot spots and maintaining exceptional comfort from front to rear.

Important:

1. Ships for $99.00 flat rate freight
2. Interior AC components sold separately.
3. Requires thermostat, control kit and ceiling assembly based on configuration for a complete AC system (Sold separately)

Features & Benefits

Variable-Speed Inverter Compressor Technology:Advanced inverter-driven compressor technology continuously adjusts cooling capacity to match interior conditions, providing faster cooling, greater efficiency, quieter operation, and improved comfort.

Powerful 18,000 BTU Cooling Capacity:Delivers industry-leading cooling performance capable of rapidly reducing cabin temperatures even during extreme summer conditions.

Environmentally Friendly R32 Refrigerant:Utilizes next-generation R32 refrigerant, offering improved cooling efficiency and a significantly lower Global Warming Potential (GWP) than previous refrigerants.

High-Volume Airflow: Produces 270 CFM (Cubic Feet Per Minute) of conditioned airflow for rapid cool-down and more even temperature distribution throughout the RV.

360° Airflow Distribution: When paired with the compatible Everest Ceiling Assembly, conditioned air is distributed evenly throughout the RV, reducing temperature variations and eliminating uncomfortable hot spots.

Technical Specifications

• Manufacturer:  Coleman-Mach

• Series:  Everest VS-18 Mach-C

• Manufacturer Part Number: 2111-00481 (Black)

• Cooling Capacity: 18,000 BTU

• Function: Air Conditioner Only

• Cooling Technology:  Variable-Speed Inverter Compressor

• Refrigerant: R-32 (Factory Charged)

• Metering Device: Capillary Tube

• Electrical Rating: 115 VAC, 60 Hz, Single Phase

• Cooling Full Load Amperage (ARI Standard Conditions):
  • Turbo: 12.7 Amps
  • High: 10.7 Amps
  • Medium: 8.9 Amps
  • Low: 6.6 Amps
  • Eco: 5.0 Amps
• Airflow:  270 CFM (Turbo Mode)

• Mounting Location: Rooftop

• Roof Opening Required    Standard 14" × 14"

• Compatible Systems: Ducted or Non-Ducted RV Systems

• Built-In Zone Control Board: No

• Overall Dimensions: 32.5" L × 25" W × 12.13" H

• Rooftop Footprint: Approximately 800 sq. in.

• Unit Weight: 68 lbs

• Shipping Weight: Approximately 84 lbs.

• Color:  2111-00481: Black

• Condensate Pump: No

• Remote Control: No

• Marine Rated: No

• Estimated Installation Time: Approximately 1.5 Hours

• Recommended Circuit Protection: 20 Amp Time-Delay Fuse or HACR Circuit Breaker

• Circuit Rating: Minimum: 20 Amps | Maximum: 20 Amps

• Compatible Ceiling Assembly: Coleman-Mach 2111-0044

• Compatible Wall Thermostats: 2111-0043 (Heat/Cool) or 2111-0045 (Cool Only)

• 53 db rating on low / ECO setting
• Warranty: Coleman 2-Year Manufacturer Warranty

Important Installation Information

Please Note: The rooftop air conditioner, air distribution box (ceiling assembly), and thermostat are sold separately.

A complete installation requires all of the following components:

• Coleman-Mach Everest VS-18 Variable Speed Rooftop Air Conditioner (2111-00481)
• Coleman-Mach Everest 360° Airflow Ceiling Assembly (Item 2111-0044)
• Coleman-Mach Heat/Cool Thermostat (Item 2111-0043)
  • or
• Coleman-Mach Cool-Only Thermostat (Item 2111-0045)

These components are required for proper operation and are not included with the rooftop unit unless otherwise specified.

Note: All new replacement RV air conditioner units come with a pre-installed roof compression gasket on the base of the unit.

This gasket is designed to provide a proper seal between the A/C and the RV roof, ensuring a secure and leak-resistant installation.

No additional sealant or roof gasket will be required for the rooftop AC unit.
