Conjunto de techo Furrion Chill R32 para instalaciones de zona única

What is the Furrion Chill R32 ceiling assembly designed for?

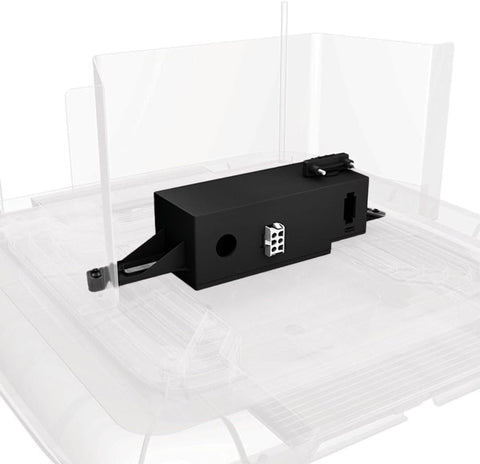

This ceiling assembly is the indoor interface for a Furrion Chill R32 rooftop air conditioner running as a single zone, meaning one thermostat controls one AC unit. It mounts to the interior ceiling opening, houses the return air filter and louvers, and connects to the rooftop unit's electrical and control wiring. The R32 designation refers to the refrigerant used in the matching rooftop unit, so this assembly is only compatible with Chill R32 systems, not older R410A Furrion models.

How do I know if I need a single zone or multi-zone ceiling assembly?

Count your thermostats and rooftop AC units. A single zone setup uses one thermostat to control one rooftop unit, which is the most common configuration in smaller travel trailers and shorter fifth wheels. If your RV has two rooftop air conditioners controlled independently or by a zoned thermostat, you need a multi-zone ceiling assembly instead. Confirm your wiring configuration and thermostat type before ordering to get the correct fit.

Is the Furrion Chill R32 ceiling assembly ducted or non-ducted?

The ceiling assemblies in this collection are configured for non-ducted installations, where conditioned air discharges directly into the living space through the assembly's louvers rather than traveling through ceiling ductwork. If your RV uses overhead ducting to distribute air to multiple registers, you will need a ducted ceiling assembly. For comparable non-ducted options on other platforms, see the FreshJet 5 non-ducted ceiling assembly or the Coleman Power Saver non-ducted assembly with wall thermostat.

Will this ceiling assembly work with my existing thermostat?

Compatibility depends on the specific assembly in this collection and the thermostat type your Chill R32 system uses. Verify whether your installation runs on a wall-mounted thermostat or the ceiling-mounted control configuration, then match it to the assembly variant listed on the product page. If you are replacing an older Furrion ceiling assembly, confirm the model number on the existing unit before ordering. For help confirming fitment, text or call 817-984-1852.

What rooftop unit does this ceiling assembly pair with?

This assembly pairs with the Furrion Chill R32 rooftop air conditioner family, which uses R32 refrigerant for improved efficiency over the previous R410A Chill series. It will not interface correctly with the older Furrion Chill or Chill HE rooftop units. Check the model and serial label on your rooftop unit to confirm it is an R32 variant before ordering. If you are also reviewing other AC platforms, the Coleman Legacy ducted ceiling assembly covers a different configuration.

How does this ceiling assembly install?

Installation involves removing the existing ceiling assembly, routing the wiring harness through the 14 x 14 inch ceiling opening, connecting it to the rooftop unit's control board, and securing the assembly to the ceiling with the supplied hardware and compression bolts. The work is straightforward for an experienced DIY owner with basic electrical comfort, typically taking under an hour. Always disconnect shore power and battery before working on the system, and verify the roof compression gasket on the rooftop unit is intact during the swap.
