Conjunto de techo Furrion para instalaciones de una o varias zonas

Filtrar:

Precio
El precio más alto es $143.95 Restablecer
$
$
Tipo de producto
0 seleccionados Restablecer
Marca
0 seleccionados Restablecer

5 productos

What is a Furrion ceiling assembly and when do I need one?

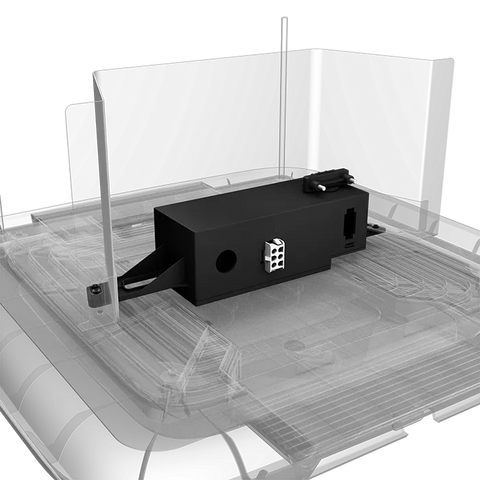

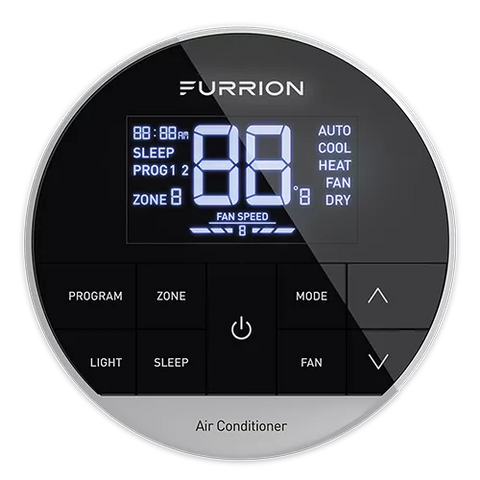

A Furrion ceiling assembly is the interior-side component that pairs with a Furrion Chill rooftop air conditioner to complete the install. It houses the air distribution, return grille, and control interface inside the RV. You need a ceiling assembly any time you are installing a new Furrion Chill rooftop unit, replacing a damaged interior assembly, or converting between single-zone and multi-zone setups. If you are building out a non-ducted system instead, see the Furrion Original ceiling assembly for non-ducted installations.

Will this ceiling assembly work with the Furrion Chill Cube?

Yes. This collection includes ceiling assemblies designed for the Furrion Chill Cube RV air conditioner in both single-zone and multi-zone configurations. Confirm your rooftop unit model number and your existing ceiling cutout dimensions (standard 14 x 14 inch opening) before ordering to make sure you get the correct fit.

What is the difference between single-zone and multi-zone installations?

A single-zone setup uses one thermostat to control one rooftop AC unit, the typical configuration for shorter trailers and most Class C coaches. A multi-zone setup links two or more rooftop units to a shared control system so each zone (front living area, bedroom) can be set independently, common in fifth wheels and longer motorhomes. The ceiling assembly you choose must match the zone configuration of your system. If you are working with a different Furrion platform, the FreshJet 5 heat pump ceiling assembly covers Dometic non-ducted heat pump installs.

Can I install a Furrion ceiling assembly myself?

Most RV owners with basic electrical and mechanical experience can install a Furrion ceiling assembly. The job involves disconnecting 120V power at the breaker, removing the existing assembly, seating the new unit against the roof compression gasket, wiring the control harness, and torquing the mounting bolts to spec. Allow two to three hours and have a second person on hand to support the assembly during install. Need help confirming fitment or wiring? Text or call 817-984-1852.

Does this ceiling assembly include the rooftop AC unit?

No. Ceiling assemblies in this collection are the interior-side component only. They pair with a separately purchased Furrion Chill rooftop air conditioner. If you are replacing a complete system or adding a soft start to reduce inrush current on the rooftop unit, the Coleman RV air conditioner soft start is a common companion upgrade for generator and 30-amp service users.

How does shipping work on Furrion ceiling assemblies?

Ceiling assemblies ship via standard ground freight from our warehouse. Free shipping applies on orders over $100. Larger multi-zone assemblies may ship via truck freight with a flat rate noted on the product page. Confirm your shipping address can accept the package size before ordering.
