Dometic | FreshJet 5 15,000 BTU | Low-Profile Air Conditioner | with Heat Pump | 9620015928 | FJX5557MHPBKCS | Mechanical | Black
Dometic FreshJet 5 15,000 BTU Low-Profile RV Air Conditioner with Heat Pump – Black
Part Number: 9620015928
Alternate Part Numbers: FJX5557MHPBKCS | 9105306449
Upgrade your RV's comfort and climate control with the Dometic FreshJet 5 15,000 BTU Low-Profile Air Conditioner with Heat Pump. Designed as a direct replacement for Dometic Penguin II rooftop air conditioners, the FreshJet 5 combines powerful cooling performance, energy-efficient heating, quieter operation, and a modern low-profile design in a compact rooftop package.
Featuring a sleek black aerodynamic shroud and an ultra-low installed height of just 10.5 inches, the FreshJet 5 delivers exceptional cooling performance while improving roof clearance and reducing wind resistance. Whether you're replacing an aging rooftop air conditioner, upgrading your RV's climate system, or outfitting a new RV build, the FreshJet 5 provides modern performance without requiring modifications to your existing roof opening.
With a powerful 15,000 BTU cooling capacity and integrated heat pump technology, this rooftop unit provides year-round comfort by delivering dependable cooling during hot summer months and energy-efficient electric heating during cooler weather when shore power is available.
Same Fit. Upgraded Performance.
The FreshJet 5 was engineered to maintain the same mounting footprint as the popular Penguin II while incorporating significant advancements in comfort, efficiency, and reliability.
An upgraded high-performance motor and optimized blower assembly reduce interior sound levels by up to 9 dB in non-ducted applications, creating a quieter and more enjoyable RV environment. A redesigned aerodynamic shroud and enhanced airflow management improve overall cooling efficiency, while the integrated hard start system assists compressor startup and reduces electrical strain during operation.
The FreshJet 5 also utilizes environmentally friendly R-32 refrigerant, which provides improved heat transfer characteristics and increased operating efficiency while reducing environmental impact compared to older refrigerants.
Features & Benefits
- Powerful 15,000 BTU cooling capacity
- Integrated heat pump for supplemental electric heating
- Direct replacement for Dometic Penguin II rooftop air conditioners
- Ultra-low-profile design with only 10.5" installed height
- Modern black aerodynamic rooftop shroud
- Upgraded high-performance motor and blower assembly
- Up to 9 dB quieter operation than Penguin II in non-ducted applications
- Built-in hard start technology for improved compressor startup
- Environmentally friendly R-32 refrigerant
- Lightweight composite housing reduces rooftop weight
- Reinforced steel base pan for increased durability and structural support
- Improved airflow design for enhanced cooling performance
- Reduced wind resistance for improved aerodynamics
- Fits standard 14" x 14" RV roof openings
- Ideal for OEM installations, replacements, and upgrades
- Compatible with single-zone and multi-zone thermostat systems when properly configured
Important Installation Information
- Heat Pump Model
- Black Exterior Shroud
- Mechanical Configuration
- Rooftop Unit Only
- No pre-installed controls included
- Compatible air distribution box (ADB) required for operation
- Non-ducted applications only
- Fits standard 14" x 14" roof openings
- 115V AC operation
- 12V DC required when using compatible wall control systems
- Professional installation recommended
- Due to package size and weight, this product ships via freight carrier and cannot be shipped via standard parcel services
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dometic |
| Series | FreshJet 5 |
| Manufacturer Part Number | 9620015928 |
| Alternate Part Numbers | FJX5557MHPBKCS, 9105306449 |
| Product Configuration | Mechanical |
| Cooling Capacity | 15,000 BTU/hr |
| Heating Type | Heat Pump |
| Color | Black |
| Refrigerant | R-32 |
| Power Supply | 115 VAC, 60 Hz |
| Additional Control Voltage | 12V DC (Wall Controls Only) |
| Roof Opening Requirement | 14" x 14" |
| Application | Non-Ducted |
| Controls Included | No |
| Air Distribution Box Required | Yes |
| Thermostat Compatibility | Single-Zone or Multi-Zone |

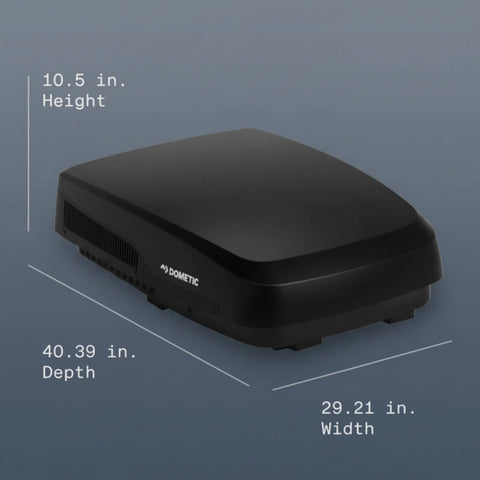

| Installed Height Above Roof | 10.5" |
| Overall Dimensions | 40-3/8" L x 29-1/4" W x 10-1/2" H |
| Housing Material | Lightweight Composite |
| Base Construction | Reinforced Steel |
| Compressor Assist | Built-In Hard Start |
| Installed Weight | 96 lbs |
| Shipping Method | Freight Only |
Cross Reference Information
The following part numbers identify this same Dometic FreshJet 5 15,000 BTU Low-Profile Mechanical Air Conditioner with Heat Pump:
- 9620015928
- FJX5557MHPBKCS
- 9105306449
Why Choose the FreshJet 5?
The Dometic FreshJet 5 was designed to modernize and improve upon the proven Penguin II platform by delivering quieter operation, improved efficiency, reduced rooftop height, environmentally friendly refrigerant technology, and enhanced durability—all while maintaining the same fit and compatibility RV owners need. With its powerful 15,000 BTU cooling capacity, integrated heat pump, and premium low-profile black design, the FreshJet 5 provides dependable year-round comfort for virtually any RV adventure.
Note: All new replacement RV air conditioner units come with a pre-installed roof compression gasket on the base of the unit.
This gasket is designed to provide a proper seal between the A/C and the RV roof, ensuring a secure and leak-resistant installation.
No additional sealant or roof gasket is required for the rooftop AC unit.
Need help confirming fitment?
Our team at United RV Parts is here to help you find the right replacement model or repair parts for your RV Air Conditioner.
Text or call 817-984-1852 with the make and model number of your existing water heater and we’ll make sure you get exactly what you need the 1st time.
