WFCO | Power Inverter | 12Vdc | 120Vac | WF-5120 | 2,000 Watts
The WFCO WF-5120 Power Inverter is a reliable and efficient way to convert 12Vdc to 120Vac. This inverter is capable of providing up to 2,000 Watts of power and features:
- Provides high-efficiency power at full-load conditions with safeguards that include overload protection, over-temperature protection, short-circuit protection, and reverse polarity protection
- Features an automatic transfer switch, pure sine wave output, hi-tech filtering for premium electronics and refrigerators, and an easy hi-pot testing design

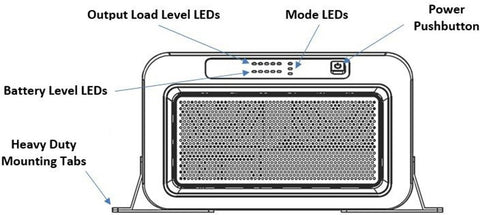

- LED status indicators that display battery charge and inverter load levels, a low battery indicator, as well as a remote-control system that features the same display menu as the unit

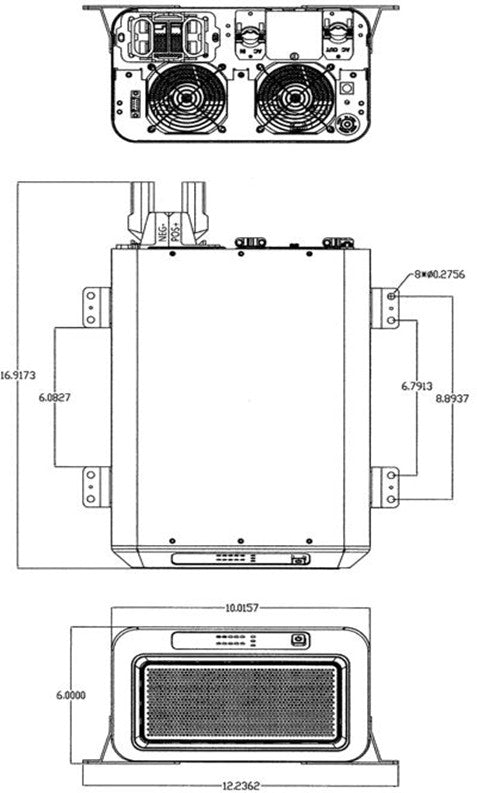

- 16.2 L x 10.8 W x 6.65 H (inch)
| DC Input Voltage |
12V DC |
|---|---|
| Output Waveform |
Pure Sine Wave (THD <3%) |
| Efficiency (full load) |
>80% |

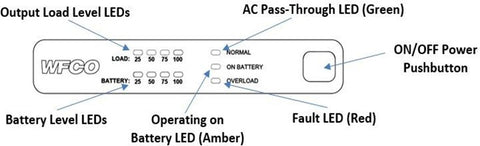

| Status Indicator Lights |
Green – AC normal; Amber – On battery; Red – Overload, fault two LED bars (with 4 LEDs) – Battery & Load Level |
| Transfer Switch |
Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating |
| Transfer Time |
<50 milliseconds |
| Protection Features |
AC Output Power, Internal Cooling, Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit |
| Certifications |
cUL458, FCC Class B compliant |
| Dimensions |
16.2 L x 10.8 W x 6.65 H (inch) / 412 L x 274 W x 169 H (mm) |
| Weight |
Net: 9.08 kgs / 20 lbs; Gross: 10.9 kgs / 24 lbs |
| Watts |
2.0 kW |
| Input Voltage/Hz |
120 VAC, 60 Hz |
| Input Voltage Range |
10-15 VDC |
| AC Voltage Regulation |
+/- 3% from no load to full load under battery range |
| Remote Control Panel |
Yes |

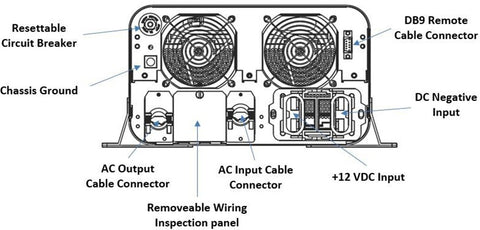

| DC Connections |
# 2/0 AWG wires required and with 250Adc in-line fuse |
| Overload Protection |
Current limiting & shutdown |
| Short Circuit Protection |
System shutdown upon short-circuit |
| Over Temperature Protection |
System Shut Down |
| DC Reverse Polarity |
Battery reverse input protected by fuse |
| AC Output Power |
Protected by 20A/120Vac Circuit Breaker |
| Internal Cooling |
DC Brushless forced fans |
