WFCO | Power Inverter | 12DC | 120AC | WF-5220 | 2,000 Watts

WFCO
SKU: WF-5220 UPC: 816227013231
Save $600.00 Free Shipping
$699.99 $1,299.99you save $600.00

The WFCO WF-5220 Power Inverter is a reliable and powerful inverter that converts 12VDC to 120VAC, with a maximum output of 2,000 Watts. It features:

  • Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating
  • Protects AC Output Power, Internal Cooling, Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit
  • Allows the AC input to bypass the Inverter when the Inverter is connected to an AC power source
  • ULC458, FCC Class B compliant
  • 9.8″W x 15.9″L x 4.5″H
  • WF-5320 is direct replacement for this unit

This inverter is perfect for powering your RV, boat, or other recreational vehicle.

Weight 5 lbs
Dimensions 9.63 × 8.4 × 13 in
Transfer Switch

Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating
Transfer Time

<20 milliseconds
Protection Features

AC Output Power, Internal Cooling, Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit
Certifications

ULC458, FCC Class B compliant
Dimensions

9.8″W x 15.9″L x 4.5″H
Weight

12.8 lbs.
Input Voltage/Hz

120 VAC, 60 Hz
Input Voltage Range

10-16 VDC
AC Voltage Regulation

+/- 3% from no load to full load under battery range

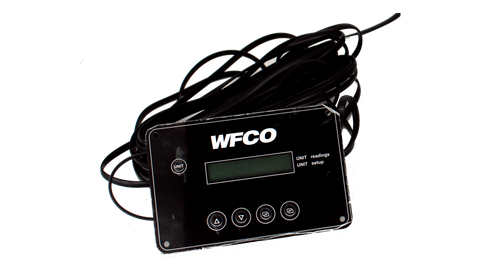

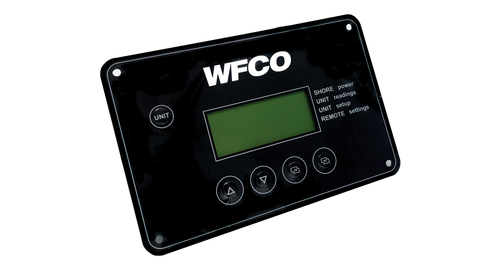

Remote Control Panel

Yes
Overload Protection

Current limiting & shutdown
Short Circuit Protection

System shutdown upon short-circuit
Over Temperature

System Shut Down
DC Reverse Polarity

Battery reverse input protected by fuse

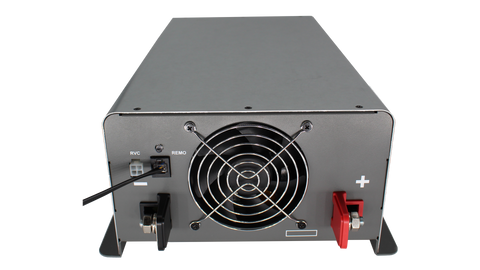

Internal Cooling

DC Brushless forced fans
Rating Power

2000VA {de-rating after 40°C, refer to de-rating curve)



Protect your investment
Add An Extra 24 Months To Your Inverter Warranty
Add An Extra 24 Months To Your Inverter Warranty
$99.99

Product Overview

WF-5220 Inverter Series 2000-watt delivers outstanding performance. The internal transfer system automatically allows the AC input to bypass the Inverter when the Inverter is connected to an AC power source. Other essential features include pure sine wave output, providing the hi-tech filtering needed for premium electronics and refrigerators, plus an easy hi-pot
testing design that allows hi-potting output circuits through the Inverter.With over a decade of inverter manufacturing, WFCO knows what is essential. Reliability, clean signal, easy installation, and intelligent power management make the WF-5220 Inverter the best choice for RV inverters.

  • Dimensions - 9.63 x 8.4 x 13 in
  • Transfer Switch - Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating
  • Transfer Time - <20 milliseconds
  • Protection Features - AC Output Power, Internal Cooling, Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit
