Hengs | Skylight - Emergency Escape Hatch | 48621-C2 | Manual Open | Metal Frame | Aluminum Screen | Plastic Lid | White
The Hengs 48621-C2 is a dual-purpose roof-mounted skylight and emergency exit hatch designed for RVs, travel trailers, campers, and similar mobile structures. This unit provides code-compliant emergency egress while also functioning as a ventilation skylight, allowing natural light and airflow into the interior.
Constructed with a heavy-duty extruded aluminum frame, the hatch ensures structural rigidity and long-term durability under road vibration and environmental exposure. The integrated opaque white plastic lid offers weather resistance and diffused daylight, while the fine aluminum insect screen maintains airflow without allowing debris or pests to enter.
The hatch operates via a manual crank/hinged opening system, enabling controlled ventilation during normal use and rapid full opening for emergency escape. A quick-release screen mechanism allows immediate exit when needed, meeting typical RV safety requirements.
Designed for standard RV roof openings, the 48621-C2 installs easily using an exterior flange and includes an interior garnish trim for a clean, finished appearance.
Specifications
- Manufacturer: Heng’s Industries
- Part Number (MPN): 48621-C2
- Product Type: RV Roof Escape Hatch / Skylight Vent
- Operation Type: Manual (crank / push-open)
- Application: RVs, travel trailers, campers, motorhomes, marine
Dimensions
- Nominal Opening Size: 17" x 24"
- Rough Cutout Size: ~19-1/4" x 26" to 26-1/2"
- Overall Flange Dimensions: Approx. 21" x 28" (typical for this class)
- Garnish Depth: Includes (4-piece interior trim ring, ~2" height)
Materials & Construction
- Frame: Heavy-duty extruded aluminum
- Lid/Dome: Opaque white molded plastic (UV-resistant)
- Screen: Fine mesh aluminum insect screen
- Finish Color: White
Functional Features
-
Dual Function:
- Emergency escape (egress compliant design)
- Ventilation skylight
-

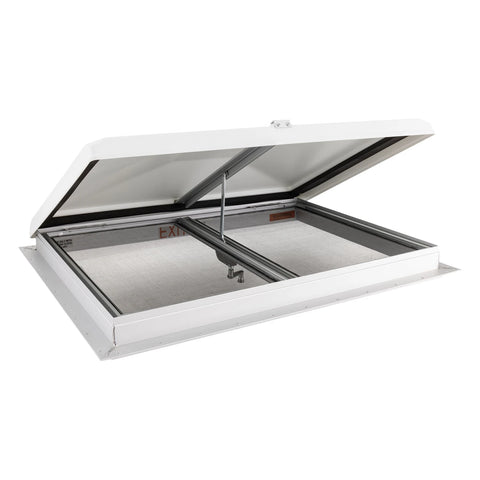

Opening Mechanism:
- Manual crank/hinged lid
- Full upward opening for exit
-

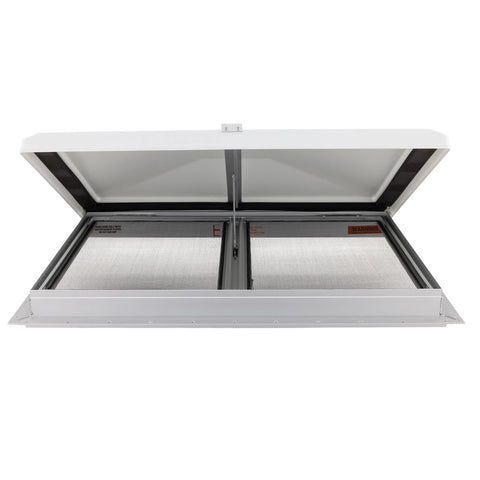

Ventilation:
- Large opening area for airflow
- Screened to keep insects out
-

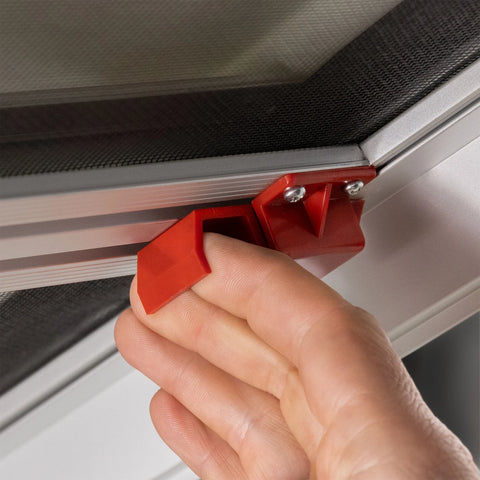

Emergency Exit System:
- Quick-release screen for rapid exit
- Hinged lid allows unobstructed escape path
Weather & Durability
- Seal Type: Weather-tight frame with leak-resistant lid
- Water Resistance: Designed for exterior roof mounting
- UV Resistance: Plastic lid resists sun degradation (typical RV-grade material)
Installation Features
- Mounting Type: Roof mount with perimeter flange
- Interior Finish: Includes white metal garnish trim (4-piece)
- Installation Compatibility: Fits standard RV roof thicknesses
Weight & Misc.
- Approx. Weight: ~7 lbs (varies slightly by listing)
- UPC: 811878010172
-
Alternate Part References:
- 22-0351 (retailer cross-reference)
Key Benefits
- Provides life-safety emergency exit capability
- Doubles as a functional skylight and roof vent
- Durable aluminum frame resists flex and warping
- Simple manual operation with reliable mechanics
- Compatible with standard 19.25" x 26" RV roof openings
Fitment Note
This unit is sized by the clear escape opening (17" x 24"), not the roof hole. Always verify your rough opening (~19.25" x 26") before ordering to ensure compatibility.
