Dometic | Refrigerator Control Interface w/ Power Control Module | 3316995.900 | 3-Way Kit | Black

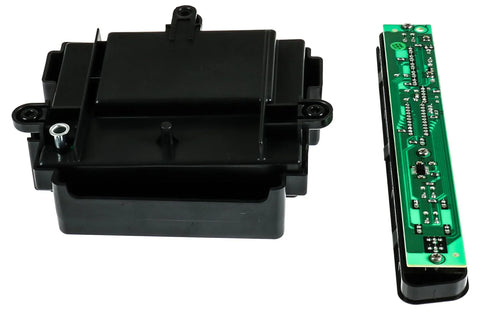

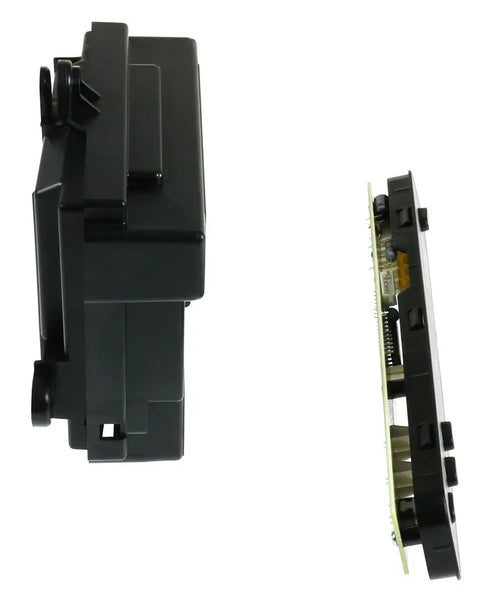

This OEM replacement kit includes both the upper Eyebrow Control Board and the lower Power Module Board for compatible Dometic 3-way refrigerator models (SKU:3316995.900; 3316995900)

Both boards must be replaced together, as they are designed to work as a matched set and are not compatible with other Dometic control boards.

Features built-in spark ignitor; eliminates need for external ignitor or thermocouple.

For models RM2354, RM2454, RM2663, RM3663 (check product number for fitment).

For 3-Way Models Only

Important Compatibility Notes

• This kit must be installed as a pair. The included eyebrow board will not work with other lower board kits such as:

  • 3308742.000

  • 3316348.900

Replacing only one of the two boards will result in communication failure between components.

• The new lower control board includes a built-in spark ignitor. If your system currently uses an external spark ignitor (e.g., part numbers 2933096014 or 2931132019), it must be removed. The electrode lead now connects directly to the new board.

• If your system previously used a thermocouple, it is no longer required. This new board uses the electrode as the flame sense.

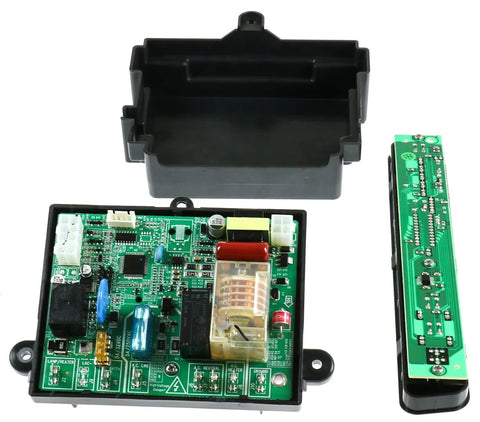

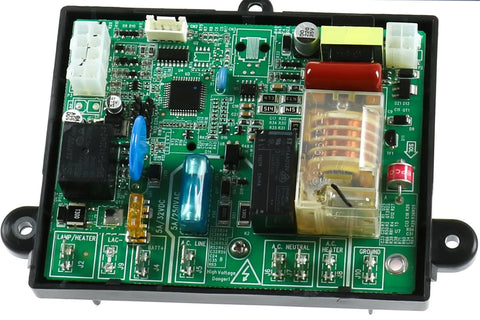

• The white 4-pin header plug on the lower board is used for manufacturing programming only and is not connected to any components in your refrigerator.

What’s Included

• Eyebrow Control Board SP-219E

  • Replaces: Dometic #4450007134 / #4450021377

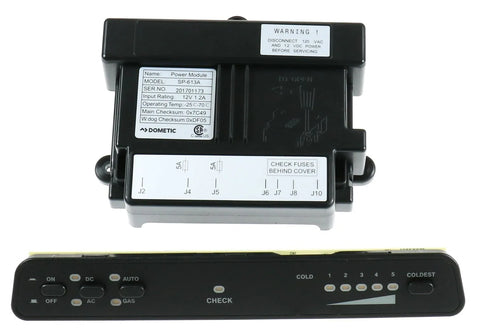

• Power Module SP-613A

  • Dometic #4450020229

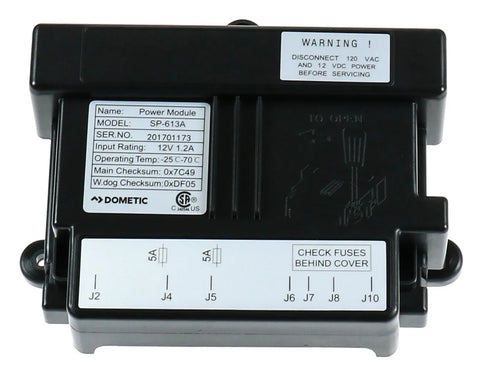

Power Module Specifications

• Input: 12V, 1.2A

• Operating Temperature: -25°C to 70°C

Compatibility by Model & Product Number

This kit is compatible with the following Dometic refrigerator models:

• RM2354

• RM2663

• RM3663

• RM2454 (For specific product numbers)

*Text or Call one of our online parts specialists to confirm fitment if you are unsure of your specific application

A replacement service kit that includes the control interface assembly & power control module assembly. Due to incompatibility between older & newer model refrigerator control system components, when replacing, these items must be replaced as a set.

NOTE: Failure to replace the existing Control Interface/Display Assembly & the existing Power/Control Module Assembly with the replacements provided in the subject service kits could result in communication errors between the 2 items, which could lead to function issues with the refrigerator.

• NOTE: Also applies to any other refrigerator system control components that the items included in the service kits subject to this notice are being substituted for.
• Brand: Dometic
• Model: 3316995.900
• Replaces: 2932884071
• Color: Black
• Features:  This service kit contains both 2932884071 (Control Interface Display) - 3316996.000 (Power Module)-must be replaced as a set.
  Included:
  •  (1) Control Interface Display

  • (1) Power Control Module

• Dimensions     Control Interface Display: 1-1/4" H x 8-1/2" W x 3/4" L

• Power Control Module: 6" x 5" x 2"

• Net Weight     .75

• Gross Weight     1.00


** Images are illustration photos provided by the vendor, actual product may vary in appearance and factory markings
