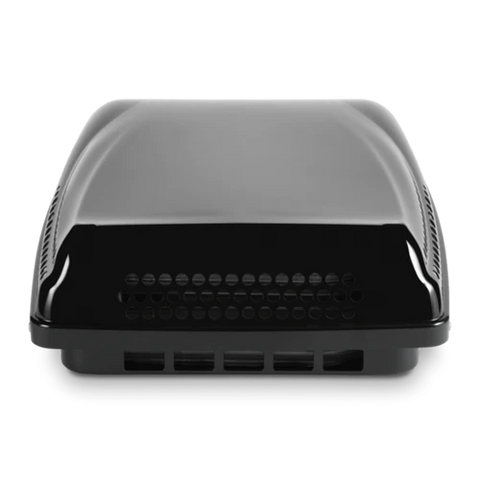

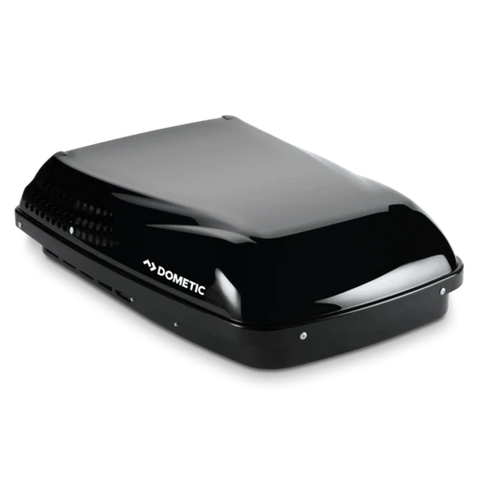

Dometic | Penguin II - Hi Cap Air Conditioner w/Heat Pump (Non-Ducted Only) | 650016CXX1J0 | 650016J | 9105306449 | 15,000 BTU | Cool / Heat Pump | Low Profile | Black
Dometic 15,000 Penguin II Air Conditioner Heat Pump Top Unit – High‑Capacity Rooftop Climate Control for RV & Camper
*** Limited Stock Available for a limited time – Once These Are Gone, They’re Gone
Shipping $99 Truck Freight, requires ceiling assembly based on configuration
Upgrade your RV’s comfort with this premium Dometic Penguin II high‑capacity rooftop air conditioner with heat pump — a rugged, efficient climate system engineered for year‑round control. Its low‑profile, aerodynamic design not only improves aesthetics but also reduces wind drag while driving.
Features:
-
High Capacity Cooling; Heating: Delivers approximately 15,000 BTU of cooling with an integrated heat pump for efficient warming, making it ideal for hot summers and cooler nights on the road.
-
Low‑Profile Aerodynamics:At just 11‑1/4″ tall, the sleek shroud enhances aerodynamics and minimizes wind resistance.
-
Durable Construction:Rib‑reinforced base pan and lightweight EPP foam housing improve strength, efficiency, and service life in demanding environments.
-
Eco‑Friendly Refrigerant:Uses R410A refrigerant,which boosts thermal efficiency and performs better than older formulas.
- Installation:Designed for non‑ducted applications only — an air distribution box must be installed separately for proper airflow integration.
Details:
- Cooling Capacity: ~15,000 BTU
- Voltage Requirement: 115 V AC, 60 Hz
- Amperage Draw: ~12.5 A
- Airflow: ~265 CFM
- Net Weight: ~96.8 lbs
- Color: Black
- Model: 650016CXX1J0
- MPN: 9105306449
- Cooling Capacity: 15,000 BTU
- Function: Cooling + Heat Pump
- Profile: Low Profile
- Roof Opening Required: 14" × 14"
- Dimensions: 40-1/2" W × 29" D × 11-1/4" H
- Weight: Approx. 99 lbs
- Color: Black
- Refrigerant: R410A
- Vent Opening Compatibility: Fits standard 14″ × 14″ rooftop vent cutout.
- Requires a compatible Dometic CT Single Zone thermostat and ceiling assembly or air distribution box (sold separately).
Perfect for: RV owners, motorhome enthusiasts, and campers seeking robust, efficient year‑round climate control without sacrificing roof clearance or style.
Note: All new replacement RV air conditioners come with a pre-installed roof compression gasket on the base of the unit.
This compression gasket is designed to provide a proper seal between the A/C and the RV roof, ensuring a secure and leak-resistant installation.
No additional sealant or roof gasket will be required for the rooftop AC unit.
Need help confirming fitment?
Our team at United RV Parts is here to help you find the right replacement or parts for your RV Air Conditioner.
Text or call 817-984-1852 with the make and model number of your existing water heater and we’ll make sure you get exactly what you need the 1st time.
