Coleman | Basement Mount Air Conditioner | 36515-011 | Two Ton PLUS | 13500 BTU | 120 Volt | With Heat Pump

Coleman
SKU: 36515-011 UPC: 755790009442
Save $539.70 Ships $99 Freight
$4,579.99 $5,119.69you save $539.70

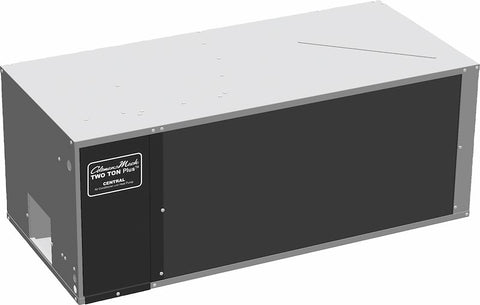

Coleman 36515-011 13,500 BTU RV Basement Air Conditioner With Heat Pump

Compact, Powerful Cooling And Heating Below Deck

You won't see it on the RV because this alternative to rooftop air conditioning installs completely out of sigh on or underneath the floor of the RV. You can customize the installation to locate the unit where it works best in your particular RV application and can also tailor the air distribution system to fit your design requirements. It also contributes to a lower center of gravity, enhancing the overall stability of the vehicle.

Stay cool and comfortable on the road with the Coleman 36515-011 Basement Air Conditioner, delivering 13,500 BTUs of efficient climate control in a compact, below-floor unit. Designed specifically for RVs with basement HVAC configurations, this rugged and reliable air conditioner keeps your living space cool without taking up valuable rooftop space—perfect for motorhomes, fifth wheels, and specialty RVs.

***Ships for $99.00 Flat Rate Freight Cost


Key Features:

  • 13,500 BTU Cooling Capacity
    Powerful performance for mid-sized RVs, keeping interiors cool even in hot, humid conditions.

  • Basement-Mount Design
    Installs beneath the floor to free up roof space for solar panels, satellite systems, or low-clearance storage.

  • Reliable Coleman Performance
    Built by one of the most trusted names in RV climate systems, known for durability and efficient operation.

  • Low-Profile, Out-of-Sight Operation
    Quiet performance with minimal intrusion into your RV’s living or exterior profile.

  • Ducted System Compatible
    Designed for ducted HVAC configurations to distribute cool air evenly throughout your RV.

Additional Specifications:

  • Heat pump Included uses electricity to provide heat when temperatures are moderate
  • Two high-efficiency compressors
  • Automatically cycles on one or both compressors
The Coleman 36515-011 Basement AC uses R32 refrigerant, which offers superior energy efficiency, faster cooling performance, and a lower global warming potential than older refrigerants—making it a more environmentally friendly and cost-effective choice for RV climate control.


Specifications:

Feature Detail
Model 36515-011
BTU Rating 13,500 BTU
Mounting Style Basement / Underfloor
Electrical 120V AC / Standard RV hookup
Weight Approx. 100 lbs (varies)
Compatibility Select RVs with ducted HVAC

Features & Benefits:

  • Two High-Efficiency Compressors
  • Automatically Cycles On One Or Both Compressors
  • Heat Pump Uses Electricity To Provide Heat When Temperatures Are Moderate
  • Powerful Cooling And Heating In Once Self-Contained Package
  • Made In USA
  • Limited 2 Year Coleman Manufacture Warranty - Starts On The Date Of Purchase

Specifications:

  • Mount: Basement
  • BTU Level: 13500 BTU
  • AC System: Ducted System Or Non Ducted System
  • Zone Control: Without Built-In Zone Control Electronic Board
  • Color: White
  • Cooling Type: Evaporative Cooling
  • Function: AC And Heating
  • Voltage Rating: 120 Volt
  • Ampere Rating: 10 Amp
  • Evaporator Flow Rate: 600 CFM (Cubic Feet Per Minute)
  • With Condensate Pump: No, Condensate Pump not included
  • Estimated Install Time (Hours): 1.5
  • 45-7/8 Inch Length x 20-7/8 Inch Width x 18.0625 Inch Height
  • Duct Kit And Interior Components Not Included - Sold Separately
