ASA Electronics | Advent Ceiling Assembly w/ Digital Thermostat | ACRDTH25 | Ducted / Non-Ducted | Flash Freeze | Replaces ACRG15 | R32

ASA Electronics
SKU: ACRDTH25
Save $60.00 Free Shipping
$139.99 $199.99you save $60.00

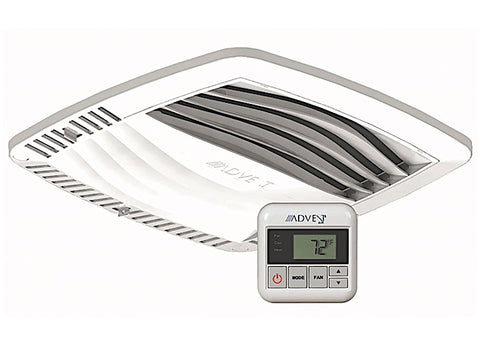

The ASA Electronics Advent Air Ceiling Assembly Kit features a FlashFreeze feature that can be used ducted or non-ducted, with the thermostat conveniently mounted by your bedside. FlashFreeze quickly cools the RV by allowing direct airflow from the upper unit to blow straight down into the RV living area.

Upgrade your RV’s air distribution system with the Advent ACRDTH25 Ceiling Assembly, designed for smooth operation, quiet airflow, and efficient cooling in RV air conditioning setups. This ceiling assembly is specifically engineered to work with Advent Air rooftop A/C units that use R32 coolant and is compatible with wall thermostat control for a sleek, modern climate control experience.

  • Ducted Airflow Design – Ideal for RVs with ducted A/C systems, ensuring even air distribution throughout your space.

  • Wall Thermostat Compatible – Designed to connect with your existing wall thermostat for seamless control of fan speed, temperature, and mode.

  • Low-Profile Design – Blends neatly into your RV ceiling with a clean, unobtrusive finish.

  • Quiet Operation – Built with noise-reducing components to minimize fan and motor sounds inside your RV.

  • Easy Installation – Includes mounting hardware and step-by-step instructions for a hassle-free setup.


Need help confirming fitment?

Our team at United RV Parts is here to help you find the right replacement or parts for your RV Air Conditioner.

Text or call 817-984-1852 with the make and model number of your existing Air Conditioner and we’ll make sure you get exactly what you need the 1st time.



Product Overview

Additional Specifications:

  • Overall dimensions:
    Air distribution box: 21" wide x 21" deep
    Thermostat: 3" wide x 3" tall x 7/8" deep
  • Thermostat temperature range: 60 F to 86 F (16 C to 30 C)
  • 2-Year warranty
  • Air distribution box works with new 2025 Advent Air AC units (sold separately) to cool the interior of your RV or camper

    Replaces, upgrades, or adds an air distribution box and thermostat
    Compatible with ducted or non-ducted AC systems

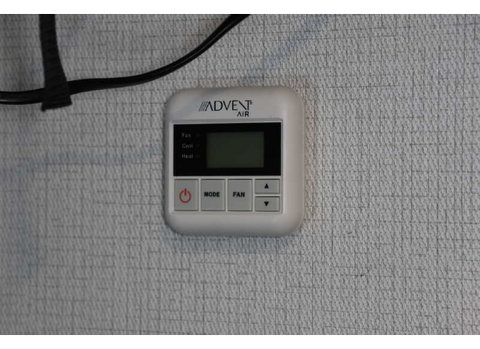

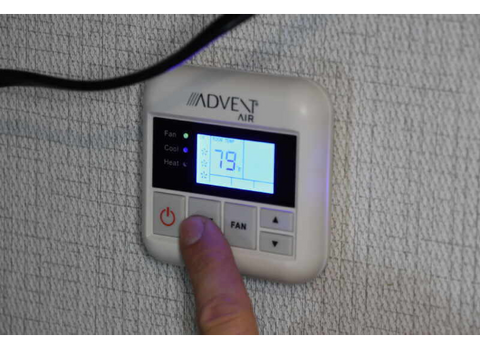

  • Wall-mounted thermostat with LED digital display controls the mode, fan, and temperature settings
  • 3 Slotted registers and a louvered vent provide maximum airflow

    Registers can be closed to divert more air to the ducts in a ducted system

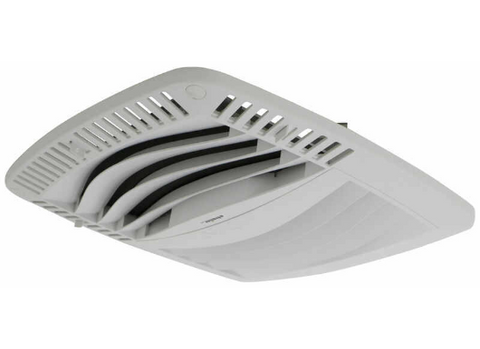

  • Curved, low-profile design gives you additional ceiling clearance
  • Removable air filter allows for easy cleaning to prevent dust and dirt build-up
  • Bolt-on installation with included mounting hardware and screw covers
  • UL and cUL certified
  • Alternate Part numbers: 310104, ACRG15

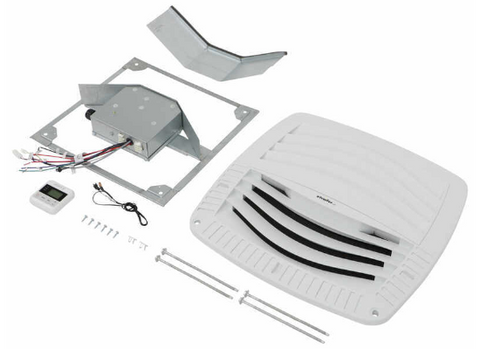

  • Kit includes ceiling assembly, digital thermostat, and digital relay

Compatible With:

  • Advent Air rooftop A/C units (such as ACM135, ACM150, etc.)
  • 14" x 14" standard ceiling vent openings

 Notes:

  • Not backwards compatible with any AC units using R410A coolant or the related accessories and parts from 2024 models or earlier.
  • This unit is updated to only work with AC systems using R32 Coolant that have been updated to meet R32 EPA standards for 2025.

Perfect for upgrading or replacing your existing ceiling assembly in an applicable R32 ducted or non-duct system, the ACRDTH25 offers improved airflow control and a modern, thermostat-ready design that integrates beautifully into any RV interior.
