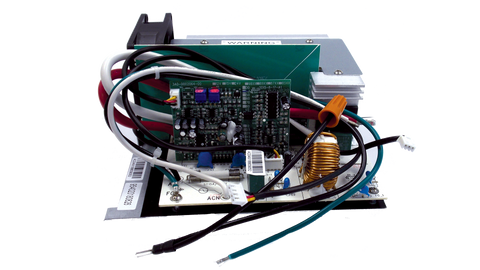

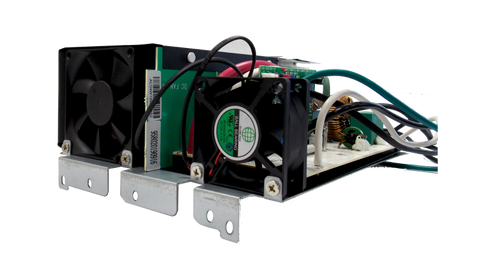

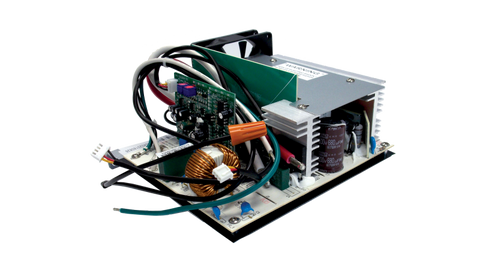

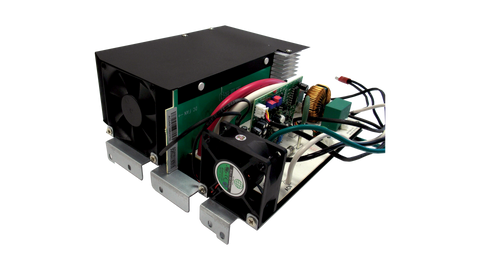

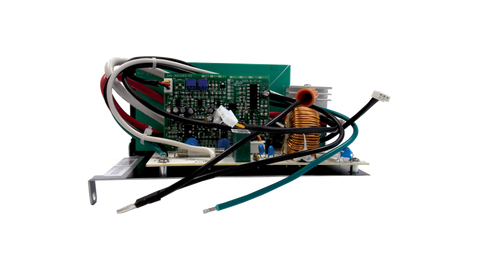

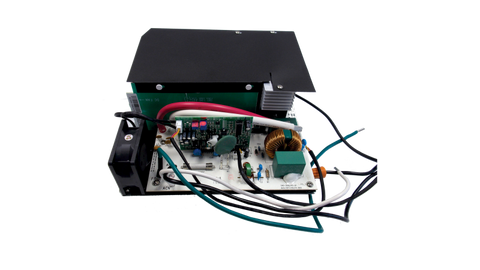

WFCO | Converter Main Board With Auto-Detection | WF-9560-AD-MBA | 60 AMP
Upgrade your WF-9560 power center with the WFCO WF-9560-AD-MBA Main Board Assembly, designed for a hassle-free and efficient replacement. This advanced board features exclusive, Patent Pending Auto-Detect technology that automatically recognizes both lithium-Ion and lead-acid battery chemistries, adjusting the charging profile to ensure optimal battery performance.
Say goodbye to manual adjustments—no buttons, no switches. The WF-9560-AD-MBA ensures your battery is accurately charged, providing peace of mind and preventing overcharging or undercharging. With multi-stage charging and current monitoring, this board maximizes the lifespan of your batteries, whether they're lead-acid or lithium-ion.
Installs easily with only (2) screws, (3) ac, and (2) dc wires. The WF-9560-AD-MBA replaces the lower power converter section on any WF-9560 Series converter. The installation process is simple, requiring only two screws, three AC wires, and two DC wires—no need for additional wiring or complicated hookups. In just 10 minutes, your new main board assembly will be ready to deliver reliable, optimized performance.
Key Features:
- Automatically detects lithium-Ion and lead-acid batteries
- Multi-stage charging and current monitoring
- Easy, quick installation (10 minutes)
- No additional wiring or hookups needed
- Compatible with all WF-9560 Series converters
- Hi-pot testing capability for added safety
| Input Voltage/Hz |
105-130 VAC, 60 Hz |
|---|---|
| Output Power |
820W |
| Charging Modes |
3-stage Intelligent Charge (VRLA/AGM) |
| Intelligent Charging Stages |
Absorption, Bulk, Storage (VRLA/AGM) |
| Battery Adaptability |
AGM, Lead Acid |
| Voltage Output |
Lead Acid – 13.2 – 14.4V DC Range, Lithium-Ion – 13.2 – 14.6 VDC, 13.6 – 14.6 VDC |
| Bulk Charge Voltage (4 Hrs.) |
14.4 V |
| Absorption Charge Voltage |
13.6V |
| Float Mode (Trickle Charge Voltage) |
13.2V DC (trickle charge voltage) |
| Cooling System |
2-Fans Zero Clearance |
| Efficiency (full load) |
>80% |
| Overload Protection |
Auto recovery on normal load, Current limiting & shutdown |
| Short Circuit Protection |
Auto recovery on normal load |
| Over Temperature Protection |
Auto recovery on normal load |
| Reverse Polarity Protection |
Fuse Protected, Replaceable by fuse of same rating |
| Protection Features |
Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit |
| AC Main Breaker |
50 A |
| AC Circuits (twin breakers) |
Two- 50A Mains with up to 12 AC Branch Circuits |
| Built-in Strain Relief |
Yes |
| DC Circuits (Quantity) |
17 (3 30A Max & 14 20A Max) |
| Case Color |
Black |
| Case Material |
Plastic |
| Certifications |
FCC Class B compliant, UL |
| Input Current |
12A |
| Input Power |
1030W |
