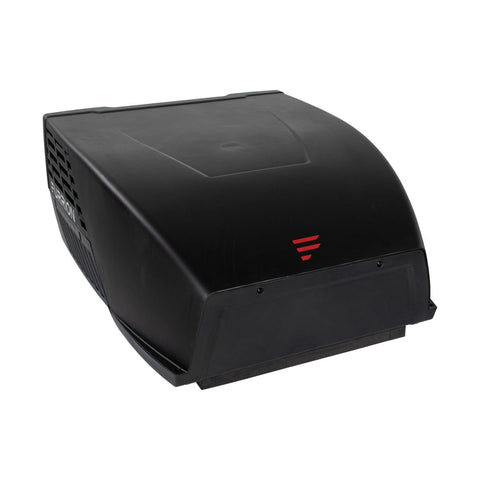

Furrion | Chill HE Air Conditioner | 2024042636 | FACR13HESA2-BL-AM | 13,500 BTU | Black| R32

High-Efficiency Cooling Power

The powerful, aerodynamic Chill HE RV roof air conditioner by Furrion has been engineered with dual fans to increase cooling efficiency by 40% and
lower operating noise. It offers effortless control of the temperature and airflow in your RV. The dual-fan design works to move cold air into your RV while simultaneously circulating the air around the primary fan.

This design reduces heat generated from operating the AC and increases airflow.

Designed to Withstand the Elements

The protective shroud surrounding the AC rooftop unit is weatherproof and UV-resistant to ensure your RV AC is safe from rain, sunrays and anything else mother nature throws at your RV. The housing also features an insulated heat exchanger that pulls heat away from the air conditioner during operation, and the mid-profile design resists air drag to help keep your fuel consumption in check.

Climatesmart and Vibrationsmart technology is built-into premium Furrion products, keeping them stable during temperature fluctuations and road conditions.

Multiple Configurations

This configurable AC system boasts different components to ensure you get the best system for your RV’s size and type. Whether you are looking for an electrically controlled unit or a manually controlled unit, a single-zone or multi-zone, we have the unique system for your needs.

Choose the air distribution box that is compatible with your roof size in manual or electric control. Add a chic thermostat and a controller to complete your RV AC rooftop system. We also offer conversion kits so
you can upgrade your existing AC from competitor units. Installation is easy and comes with complete instructions.

Note: this package includes the rooftop unit only. Additional components must be purchased
separately.

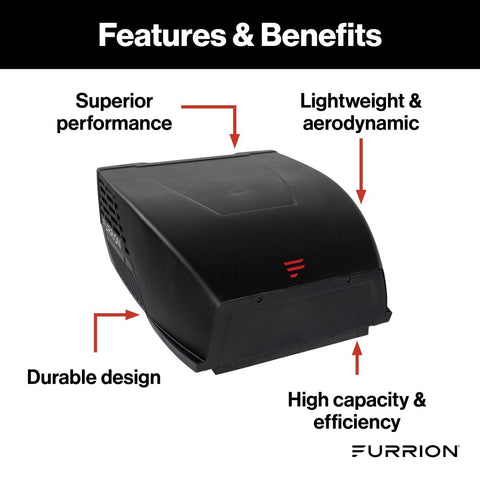

Chill HE RV Roof Air Conditioner Features:

• SUPERIOR PERFORMANCE - The Furrion Chill HE RV roof air conditioner has two fans to help move cool air faster and more efficiently inside your RV. It provides 13,500 BTUs of cooling power and is ideal for RVs, campers and other trailers
• HIGH CAPACITY & EFFICIENCY - This RV air
  conditioner has 50% higher cooling capacity and 40% more energy efficiency compared to industry standards. It is also 50% quieter than single-fan models
• DURABLE DESIGN - Vibrationsmart and
  Climatesmart technologies allow the Furrion Chill RV AC unit to stand up to tough road conditions, while the thermal-insulated shroud protects the internal components from water, heat, UV rays and debris
• LIGHTWEIGHT & AERODYNAMIC - Furrion Chill features a lightweight, aerodynamic rooftop design to reduce drag and wind resistance. This improves overall RV performance, mileage and driving conditions
• EASY TO INSTALL - The Chill HE RV roof AC unit mounts with a simple bolt-on installation and comes with a clear step-by-step installation guide

• Application: Single Zone
• Whats included: AC Unit w/ Roof Gasket Only
• Installation Type: Ducted / Ductless
• Color: Black
• Function: Cool Only
• Energy efficiency ratio: 7.1
• Power draw (while running): 11.2 amps
• Capacity: 13,500 Btu per hour

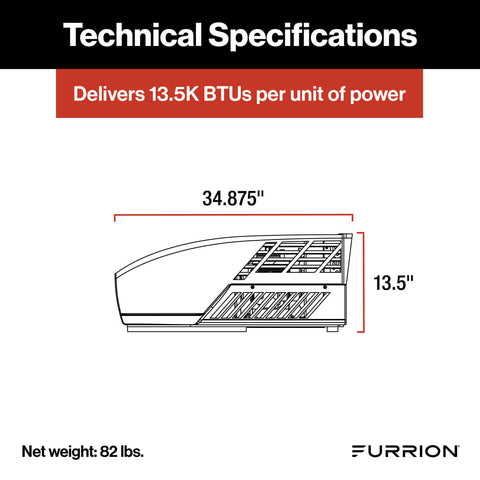

• Overall dimensions: 34-13/16" long x 27-9/16" wide x 13-9/16" tall
• Electrical rating: 115V, 60Hz
• Refrigerant: R32
• Outdoor sound level: 80dB
• 2-Year Furrion Manufacturer Warranty
• Energy Efficiency Ratio: 213
• Drop Test Standard: 6C
• IP Class: IP24
• Phase: 1Ph
• Frequency: 60Hz
• Item Length: 27.5
• Item Width: 34.875
• Item Height: 13.5
• Item Weight: 82

*** New R32 refrigerant meets 2025 EPA regulations.

Note: This R32 compliant unit is not backwards compatible with any AC systems or components from 2024 and earlier.

You will need either an R32 compliant electronic control air distribution box with an electronic controller and thermostat, or an R32 compliant manual control air distribution box with manual controller to complete
this system.
