WFCO | Main Board Assembly | Lithium Battery Auto-Detect | WF-8955-AD-MBA | 55 Amp
WFCO | Main Board Assembly | Lithium Battery Auto-Detect | WF-8955-AD-MBA | 55 Amp

WFCO | Main Board Assembly | Lithium Battery Auto-Detect | WF-8955-AD-MBA | 55 Amp

WFCO
SKU: WF-8955-AD-MBA UPC: 816227012890
Save $152.00 Free Shipping
$197.99 $349.99you save $152.00

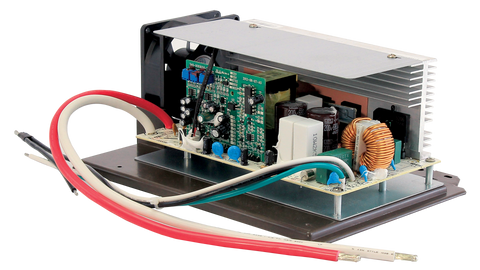

The WFCO WF-8955-AD-MBA Main Board Assembly is the perfect choice for your RV power needs. The Main Board Assembly is a hassle-free replacement for all power centers, featuring innovative Auto-Detect technology. This cutting-edge system automatically adjusts charging profiles for lithium ion and lead acid batteries, optimizing their lifespan and eliminating the need for manual adjustments. With easy installation requiring just a few screws and wires, along with optional Reverse Polarity Detection for enhanced safety, RV owners can enjoy worry-free battery management in just 10 minutes.

  • Auto-Detect Technology: Industry-first Patent Pending Auto-Detect technology in WF-8900-AD-MBA Series recognizes lithium ion and lead acid battery chemistries, adjusting charging profiles automatically.
  • Simple Installation: Easy replacement part requiring only two screws, three AC wires, and two DC wires, with installation taking as little as 10 minutes.
  • Enhanced Battery Life: Multi-stage charging and current monitoring in both lead acid and lithium profiles maximize battery life, ensuring accurate charging and eliminating risks of over or undercharging.
  • Peace of Mind for RV Owners: Eliminates the need for manual adjustments with no buttons or switches, providing peace of mind that batteries are accurately charged.
  • Compliance and Safety Features: Optional Reverse Polarity Detection meets RVIA & NEC requirements, featuring audible alarm notification and accepting hi-pot testing, without additional wiring or hookup needed.

Product Overview

Voltage: 105-13VAC
Frequency: 60Hz
Max. Input Current @15VAC: WF-8955-AD-MBA – 11A
Max. Power:WF-8955-AD-MBA – 940 watt
Continuous Power: WF-8955-AD-MBA – 750 watt
Rated DC Output Voltage: 13.6V
Rated DC Current: WF-8955-AD-MBA – 55A
Charging Control: Automatically controlled by microprocessor
Charging Modes: 3-Stage intelligent charge/2 stage intelligent charge
Intelligent Charge Mode: Absorption, Bulk and Float (Storage)/Absorption and Bulk
Battery Adaptability: LA/AGM/Lithium ion
Absorption Charge Voltage:13.6V
Bulk Charge Voltage (4 Hours):14.4V
Float Charge Voltage: 13.2V
Regulation: +/-1% accuracy against input or load changes
Cooling Fan: Speed according to the DC load amperage
VA Efficiency: >80% (under 70% of load condition)
Overload: Current-limiting and shut down; auto recovery upon return normal load
Short Circuit: Shut own and auto recovery upon return to normal
Over-Temperature: Shut down and auto recovery up return to normal
Battery Reverse Polarity: Protected by fuse; same rated fuse replacement required
Dimensions W x H x D: WF-8955-AD-MBA – 7.1 x 3.9 x 9.6 inch/181 x 99 x 243 mm
Weight:WF-8955-AD-MBA – 3.46 lbs./1.57 kg
Environmental: 20-90% non-condensing
Agency: UL458 and FCC Class B Compliant
