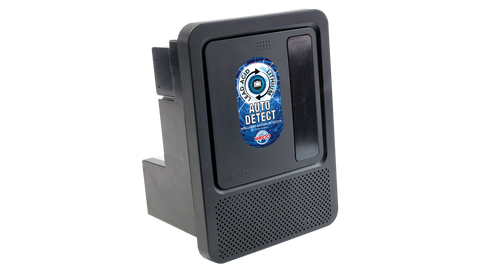

WFCO | Conveter Charger | Lithium Battery Auto-Detect | WF-8560-AD-S | 60 Amp
The WFCO WF-8560-AD-S is a 60 Amp converter charger featuring advanced lithium battery auto-detection technology. It intelligently adjusts charging parameters to match lithium battery requirements, ensuring efficient and safe charging. Designed for demanding RV power systems, this charger delivers consistent power conversion and optimal battery maintenance, extending battery lifespan and enhancing overall system reliability.
The WFCO WF-8560-AD-S is a 60 Amp converter charger equipped with lithium battery auto-detect technology. It automatically identifies lithium battery types to deliver precise charging, optimizing battery health and performance. This charger is engineered for RV systems requiring reliable power conversion and efficient battery management, ensuring extended battery life and dependable operation.
| Converter Type |
Power Center |
|---|---|
| Input Voltage/Hz |
105-130 VAC, 60 Hz |
| Output Power |
820W |
| Charging Modes |
Lead Acid – 3-Stage Intelligent Charge (VRLA/AGM) Lithium-Ion – 2-Stage Intelligent Charge, 3-stage Intelligent Charge (VRLA/AGM) |
| Intelligent Charging Stages |
Absorption, Bulk, Storage (VRLA/AGM) |
| Battery Adaptability |
AGM, Lead Acid, Lithium-Ion |
| Voltage Output |
Lead Acid – 13.2 – 14.4V DC Range, Lithium Ion – 13.2 – 14.6 VDC, 13.6 – 14.6 VDC |
| Bulk Charge Voltage (4 Hrs.) |
14.4 V |
| Absorption Charge Voltage |
13.6V |
| Float Mode (Trickle Charge Voltage) |
13.2V DC (trickle charge voltage) |
| Cooling System |
2 Speed Fan, Zero Clearance |
| Efficiency (full load) |
>80% |
| Protection Features |
Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit |
| Overload Protection |
Auto recovery on normal load, Current limiting & shutdown |
| Short Circuit Protection |
Auto recovery on normal load |
| Over Temperature Protection |
Auto recovery on normal load |
| Reverse Polarity Protection |
Fuse Protected, Replaceable by fuse of same rating |
| AC Main Breaker |
30 A |
| AC Circuits (twin breakers) |
10 (Main and 9 Branch Circuits) |
| Built-in Strain Relief |
Yes |
| DC Circuits (Quantity) |
13 (3 30A Max and 10 20A Max) |
| Dimensions |
W 9.63" x H 13" x D 8.4" |
| Weight |
2.78kg |
| Certifications |
FCC Class B compliant, UL |
| Case Material |
Plastic |
| Case Color |
Black |
| Warranty Period |
Two Year Limited Product Warranty |
| DC Current |
60A |
| Input Current |
12A |
| Input Power |
1030W |
