Dometic | Furnace Motor | 37357 | Fits Atwood 8531-35 III and 8900-III Series Furnaces

Keep your RV warm and comfortable with this high-quality direct replacement motor, designed specifically for Dometic 8531 and 8940 series furnace models. Built for reliability and efficiency, it's a smart choice for hassle-free heating on the road.

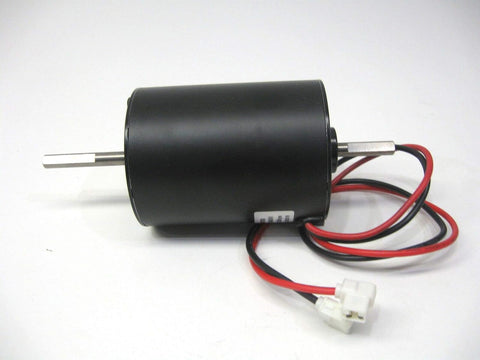

The furnace motor is attached to the blower wheel and the combustion air wheel. This is a 12V DC power motor, with two shafts. Once the control board sends power to the motor, it will start operating which will rotate the shaft attached to both wheels. The movement of both wheels will circulate the air causing air flow. the motor size and revolutions per minute will corresponds with the furnace BTU/hr size, making it very important to get the correct size motor for your furnace.

Compatible Furnace Models:

• 8531-III

• 8535-III

• 8535-IV

• 8935-DC-I

• 8940-DC-I

• 8935-DC-II

• 8940-DC-II

• 8935-DC-III

• 8940-DC-III

• 8940-III-ACLC

Key Features:

• Direct replacement for Atwood 34009, PF26157Q

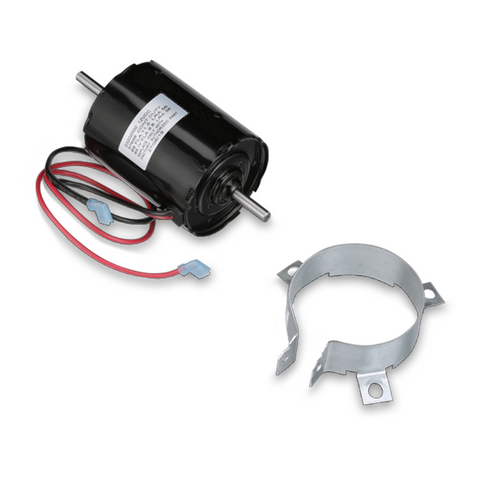

• Easy installation with included mounting bracket and hardware

• Quiet, efficient operation for consistent heating

• Durable construction for long-lasting performance

• Known as NBK Parts 20341K

Specifications:

• Voltage: 12V DC

• RPM: 2250

• Amperage: 9.8A

• Weight: 3 lbs

• Motor Case Dimensions: 3-7/8" x 3" D

• Shaft Dimensions:

  • Shaft 1: 1-7/16" L x 5/16" D

  • Shaft 2: 1-1/8" L x 5/16" D

• Wire Leads:

  • Black: 16"

  • Red: 20"

• Alternate Vendor #'s: 03-4398, 3-7357, 350003, 350007, 350245, 37698, 411630


Warranty:
Dometic 2-Year Manufacturer Warranty

**Pictures are illustration photos actual product appearance may vary
