Dometic | Small Furance | DFSD20111 | 18,000 BTU | Doored

Dometic
SKU: DFSD20111 UPC: 0713814220792
Save $190.00 Free Shipping
$1,109.99 $1,299.99you save $190.00

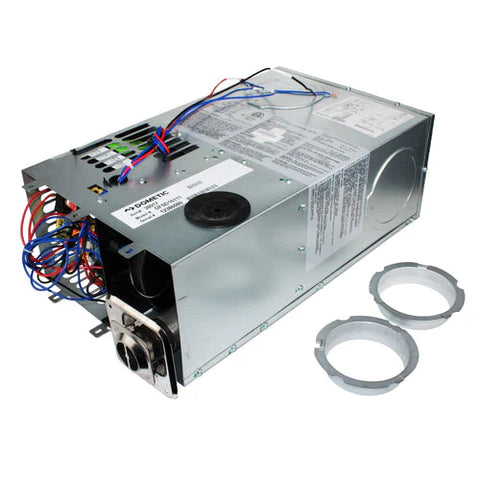

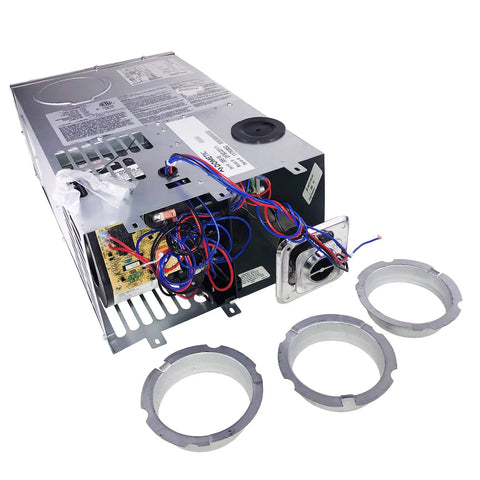

The Dometic DFSD20111 Mojave Furnace is a powerful, compact 18,000 BTU forced-air propane heater designed for easy installation and quiet comfort. Featuring a newly engineered heat exchanger with seamless tubular construction and radius bends, it delivers improved airflow and reduced noise—making it perfect for van conversions, truck campers, small trailers, and ice houses.

  • Quiet Operation – Radius tubing minimizes turbulence for a smoother, quieter airflow
  • Efficient Heat Distribution – One-piece heat exchanger maximizes air movement and output
  • Compact Design – Ideal for tight spaces without sacrificing performance
  • Customizable Ducting – Offers the most ducting options in its class

Note: The furnace housing is constructed from lightweight, pliable steel to minimize overall shipping weight. As a result, minor cosmetic bends may occasionally occur during transit. These bends do not impact the unit’s performance and can typically be corrected by gently reshaping the housing with a pair of pliers prior to installation.

*This furnace may not be a "direct" replacement. Depending on your application and what your current model furnace is, there COULD be modifications needed to replace your existing furnace with a new furnace.

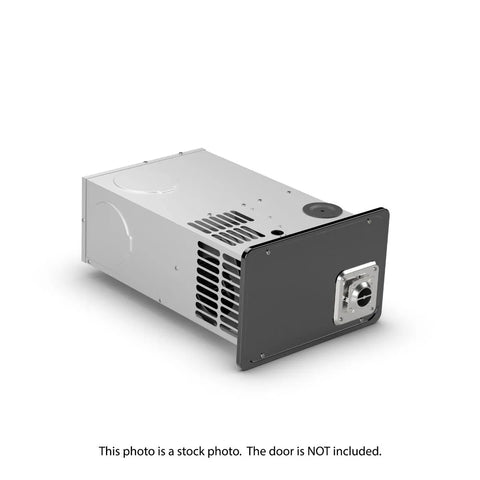

*DOOR IS SOLD SEPARATELY AND IS REQUIRED FOR INSTALLATION*

Looking for a doorless version?   Check out Model DFSD20121.

Protect your investment
Add An Extra 24 Months To Your Factory Furnace Warranty, Warranty, United RV Parts
Add An Extra 24 Months To Your Factory Furnace Warranty
$99.99

Product Overview

Note:If replacing an older AF model, an updated access door is required.

Compatibility: Replaces several older Atwood/Dometic models (see item/model numbers above).

This model DFSD20111 replaces the following older Atwood/Dometic furnaces:

Item #'s: 7920, 32723, 32725, 32726, 32855, 32858, 32860, 38926, 38930, 39256, 39260, 32855SU, 32858SU, 32860SU, 39256SU, 39260SU

Model #'s:AFSD20111, AFSD20131, AFSD20141, DFSD20131, DFSD20141 (BP, SP or SU models)

Compatible Doors:
White Part Number #33045
Black Part Number #33044 or 32985

Compatible Thermostats:
White Part Number #38453
Black Part Number #32300

Specifications:

  • Brand: Dometic
  • Series: Mojave Model DFSD20111
  • Model: 38918
  • Manufacturer SKU: 9600001165
  • Heat Source: LP Gas
  • Circulation Type: Ducted
  • Furnace Access: Doored (Exterior Access)
  • Ignition: 12v DC Electric
  • BTU's: 18,000
  • Amp Draw: 4.8 Amps
  • Features:
    12V DC Powered Unit
    Up to 4 Possible Duct Configurations
    Horizontal or Vertical Configuration for flexible installation
    Low Profile Compact Design
  • Included:
    (1) Furnace
    (2) Mounting Brackets
    (2 to 4) Duct Adapter (depending on furnace model)
  • Dimensions: Furnace (w/o Door): 12" W x 7" H x 20" D
  • Warranty: 2-Year Dometic Manufacturer Warranty
  • Net Weight: 21 lbs
  • UPC: 0713814220792
